In line with CNC machines growing rapidly, the rapid growth of use has resulted in lower costs and increased production rates. The rapid growth of the market also led to an increase in the demand for different kinds of applications, regions, and types. It’s because of the ease with which CNC machines can create complex components.
In general, CNC machines are very well-liked. They can produce high-quality products for a reasonable price and eliminate many of the issues related to traditional methods. Click here to access an incredible collection that includes CNC models with DXF files.

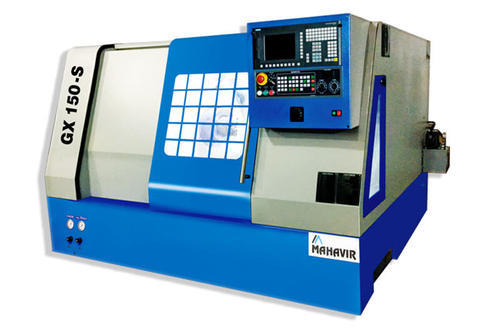

What Exactly is a CNC Machine?
CNC machines can, in the simplest phrases, carry out tasks like cutting, drilling and cutting. They create an object using drawings created by computers (DXF file). CNC machines are useful in numerous industries, like aerospace and automotive industries.
Understanding how machines function can be broken into two pieces that are the controller and CNC center.
The controller of the CNC machine functions as the component that receives data from the input sensors rotating and feeds it to the computer of the machine. The software decides on how to finish each move and alters the machining center’s actions with it.
The controller makes use of motors that servo to move its various tools to finish the task.
Different Operations Performed On A CNC Machine
Turning
The process of turning requires a tool that rotates to form the piece of material that is placed on the spindle. The material and the tool rotate with a constant speed and at an angle. The tool leaves behind what we call circular grooves that are concentric on the surface of the material. They are one of the many ways turning can be accomplished.
Drilling
The drilling process on CNC machines is different from drilling performed manually because CNC machines do not require operators to latch the drill. Computer commands direct the entire process. These commands are sent to the center of machining, which in turn directs the drill tool’s actions.
Milling
Milling is the process of cutting small pieces of material and join them again. The distinction between this process as well as drilling, is, instead of drilling instead, the CNC machine utilizes a feed and drag device to regulate the general movement of its tool.
Grinding/Filing
Another job that is possible to accomplish by a CNC machine is cutting and grinding. These processes smooth the surface of objects and make it more precise and produce completely new surfaces. Grinding and filing make use of an abrasive wheel as well as a the rotary tool to create small cuts to achieve this.
Solid Sink EDM
The solid sink EDM can be used to cut or drill through solid materials using an eroding tool. The process of the machine works identical to a traditional CNC machine. The main difference between a conventional CNC machine and an solid sink EDM is that it cuts the material. A traditional CNC machine has at least one or two rotating tools that rotate with respect to each other. However the solid sink EDM only has one tool that moves only both up and down along its axis, without movement from a different tool.
CNC Machine Basics
Some Fundamental CNC Processes:
Designing The DXF File
Designing a piece is among the most important elements of designing a studio’s CNC machine requirements. It involves programming and determining the different details, and then handling an DXF file. The design process used in CNC manufacturing is like manual manufacturing procedures.
Programming The System According To The DXF Files
The programming portion is as important as the DXF file as it requires the determination of each movement and the way they’ll be incorporated together to produce a final product. It is often a matter of trials and errors with various prototypes to determine the proper amount of motion, but also making it efficient enough for larger projects that must complete within a specified time frame.
Running The Machine
After the program that contains DXF file is completed and the DXF file is installed for the CNC machine, it’s now time to run the machine. It is about putting the material onto the spindle, cutting or drilling it swiftly and effectively without causing loss of material. They are extremely accurate however, a little knowledge with the machine is ideal to make the most utilization.
Cutting The Part
It is the stage where the precise actions in the CNC machine are performed on the material to be cut precisely. It requires the use of diverse tools that perform various functions that are coded into the software. The movement is performed precisely leaving perfectly smooth surfaces across all sides of the component.
Inspecting The Part
An internal inspection is conducted following each drill or cut is finished. This allows for components which are not being removed or cut off of the spindle by automated or manual processes.
Conclusion
If you look at the whole procedure of using the entire process of using a CNC machine, it’s clear that it is less dependent on involvement from humans and is always more efficient for any manufacturing environment. It is able to drastically decrease the quality issues caused by machines not functioning properly or making errors in the creation of the final product.
